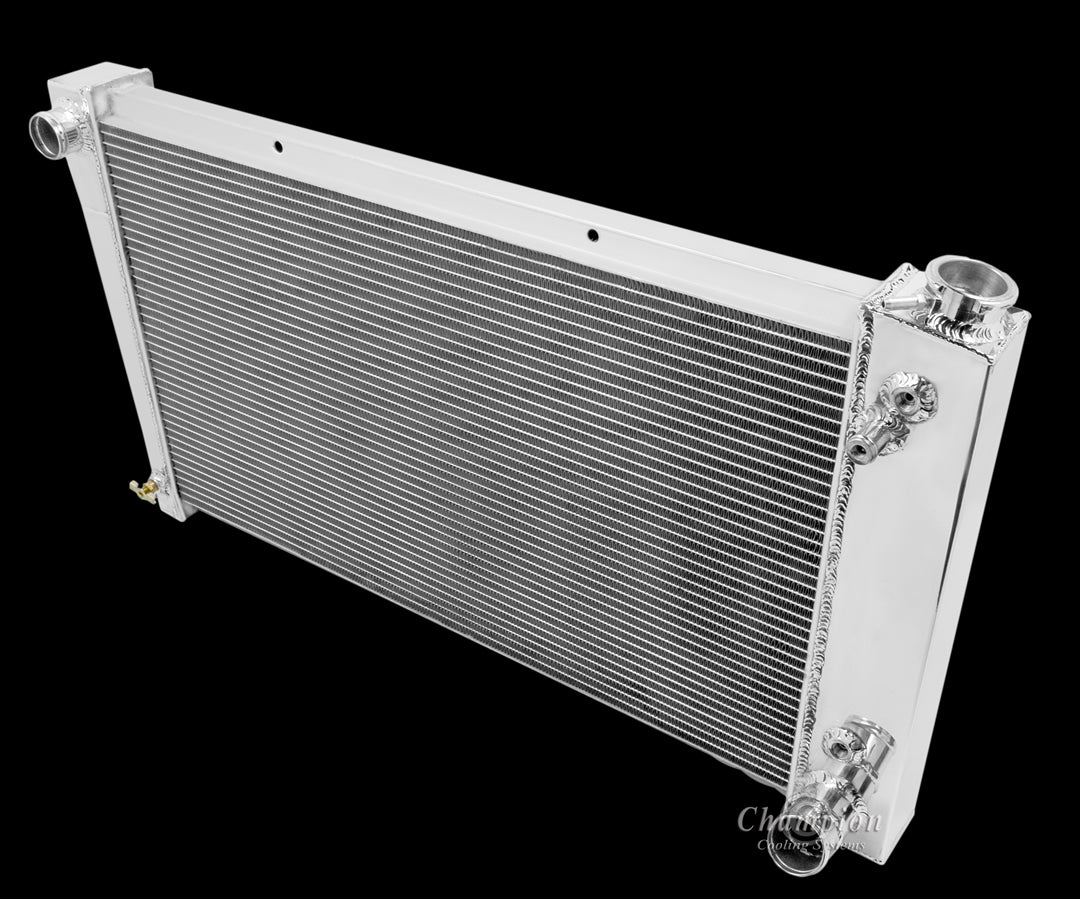

All aluminum radiator available in 2, 3 or 4 row configurations. Shroud & Fans do not include mounting hardware.
2-Row Tube Size: 3/4" 3-Row Tube Size: 5/8" or 3/4" (Depending on Model) 4-Row Tube Size: 5/8"
4-Row Radiators come standard with polished tanks
Fits 1967-1972 Chevy C/K pickups and Suburbans with the 28" wide core (automatic transmission).

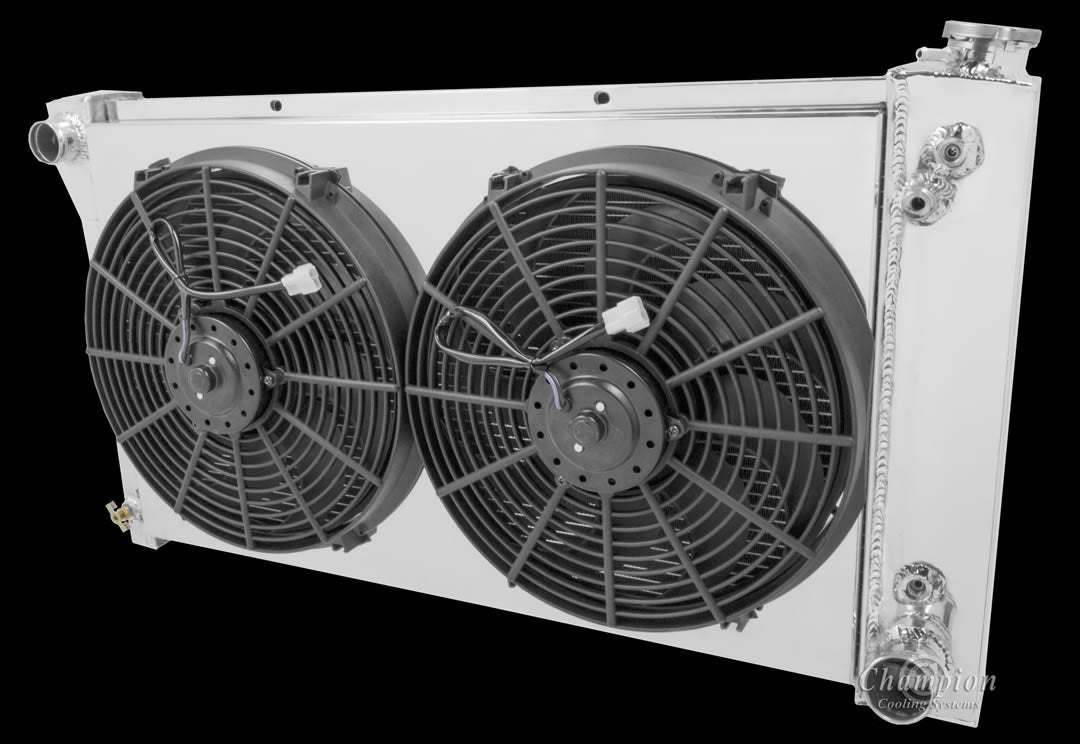

Fan package choices: single 16" electric fan with flapped shroud (FS369-16F), or dual 14" electric fans with shroud (FS369).
**SPECIFICATIONS**

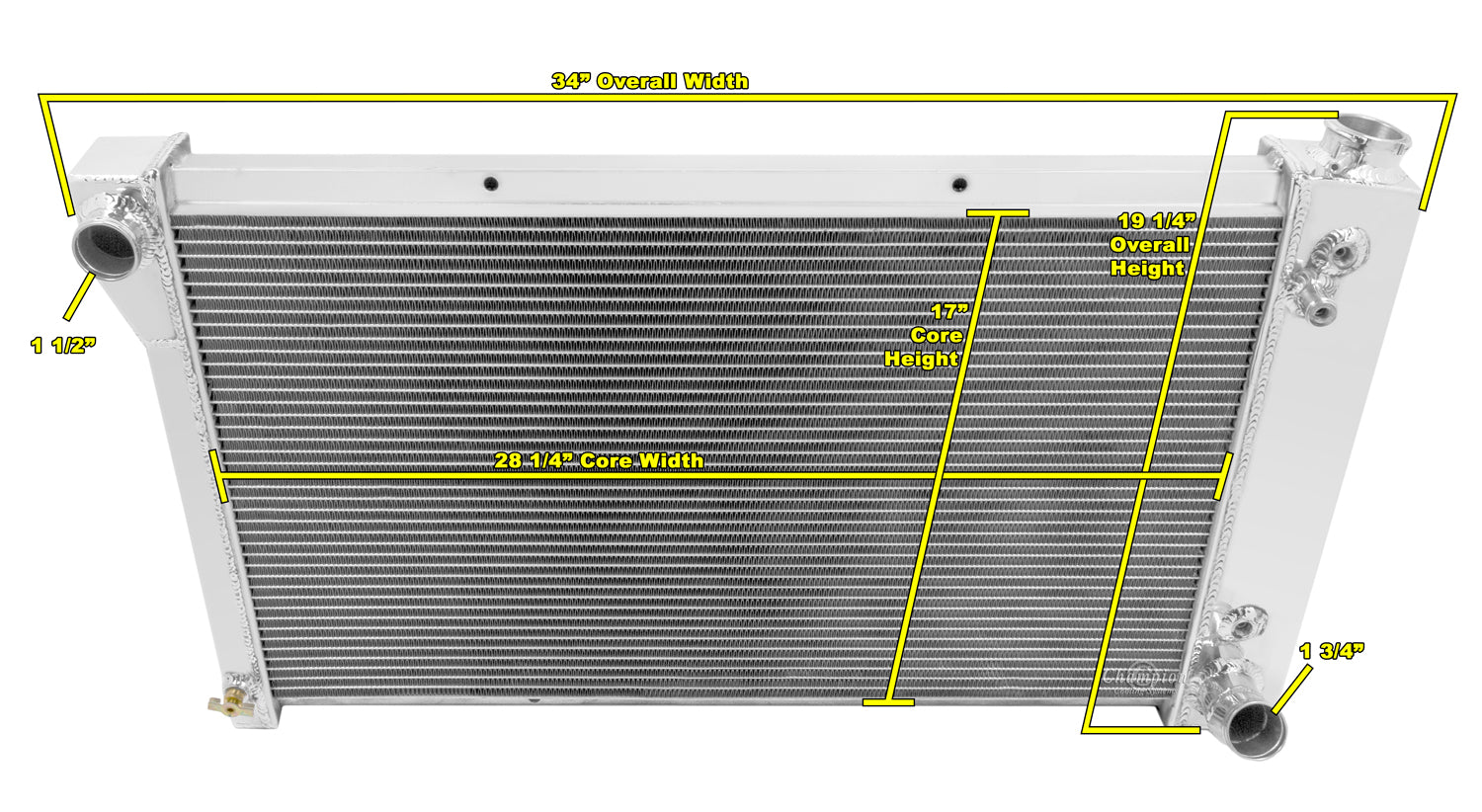

CORE DIM (H x W)
17" X 28 1/4"
OVERALL (H x W)
19 1/4" X 33 7/8"
HOSE LOCATIONS
IN: DRIVER - OUT: PASSENGER
HOSE FITTINGS
IN: 1 1/2" - OUT: 1 3/4"
TRANS COOLER
1/2-20 STRAIGHT THREAD, INVERTED FLARE
MOUNTING TYPE
SADDLE
**PACKAGE NOTES**
Package photos: The photo changes with your selections and shows exactly what is included — radiator, shroud, fan(s) and harness.
LS Swap: "3 Row - LS Dual Pass" is Champion CC369DP, a 3-row dual-pass radiator for LS engine swaps — passenger-side inlet & outlet with -16 ORB (female) ports. Includes both hose fittings: one -16 ORB to 1-1/4" hose (DP-1.25) and one -16 ORB to 1-1/2" hose (DP-1.50). Available with the single 16" or dual 14" fan package. No internal transmission cooler — automatic transmissions will need a separate external trans cooler.
Fan Relay Harness: Pick your CE Auto Electric harness in the fan package dropdown. The harness always matches the fan count — single-fan packages get a 35A single fan relay kit (Carbureted with basic trigger, or EFI negative trigger), and dual-fan packages get a 70A dual fan relay kit (Carbureted or EFI). LS swap packages come with the EFI harness.
Prefer SPAL fans? Select "SPAL Fans - Call/Email for Quote" to see the option, then email us at Sales@macsgarage.shop for pricing and availability.
FREE SHIPPING (US) on complete radiator packages — radiator with shroud & fan(s), with or without harness.
