Dakota Digital Expansion Module OBD-II

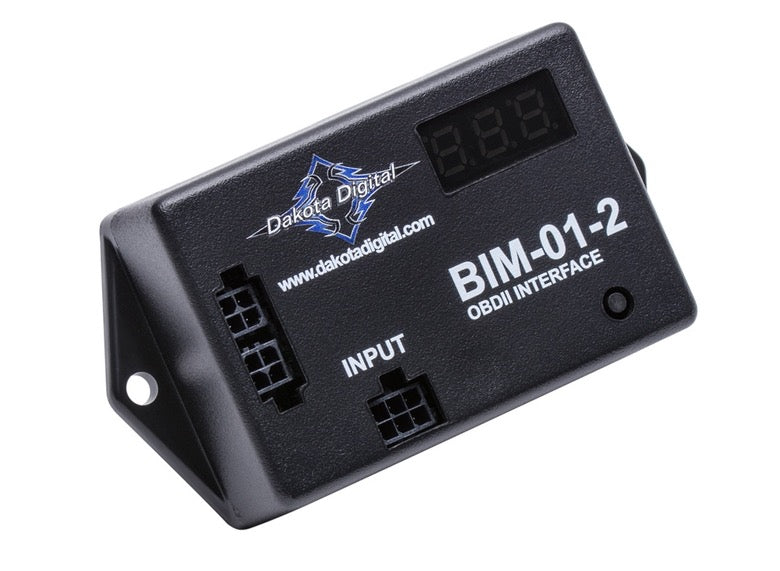

The BIM-01-2 OBD-II (J1850/CAN) Interface allows you to plug directly into the engine diagnostic port, extracting engine and transmission data from the vehicle's computer (ECM). The BIM-01-2 will collect and output the following information to Dakota Digital Instrument Systems *:

Available on most vehicles (see below):***

Speedometer

Tachometer

Engine Temperature

Check Engine Indicator

Vehicle specific:****

Intake Air Temperature

Transmission Temperature

Ambient Air Temperature

Gear Position

Oil Pressure

Boost Pressure

Due to the various factory and modified ECM's, additional data including (Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, and Gear Position) may be available, but will vary from application to application. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp, Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, Boost or Gear Position displays since this is a function of the ECM and matching OEM functional sensors.
