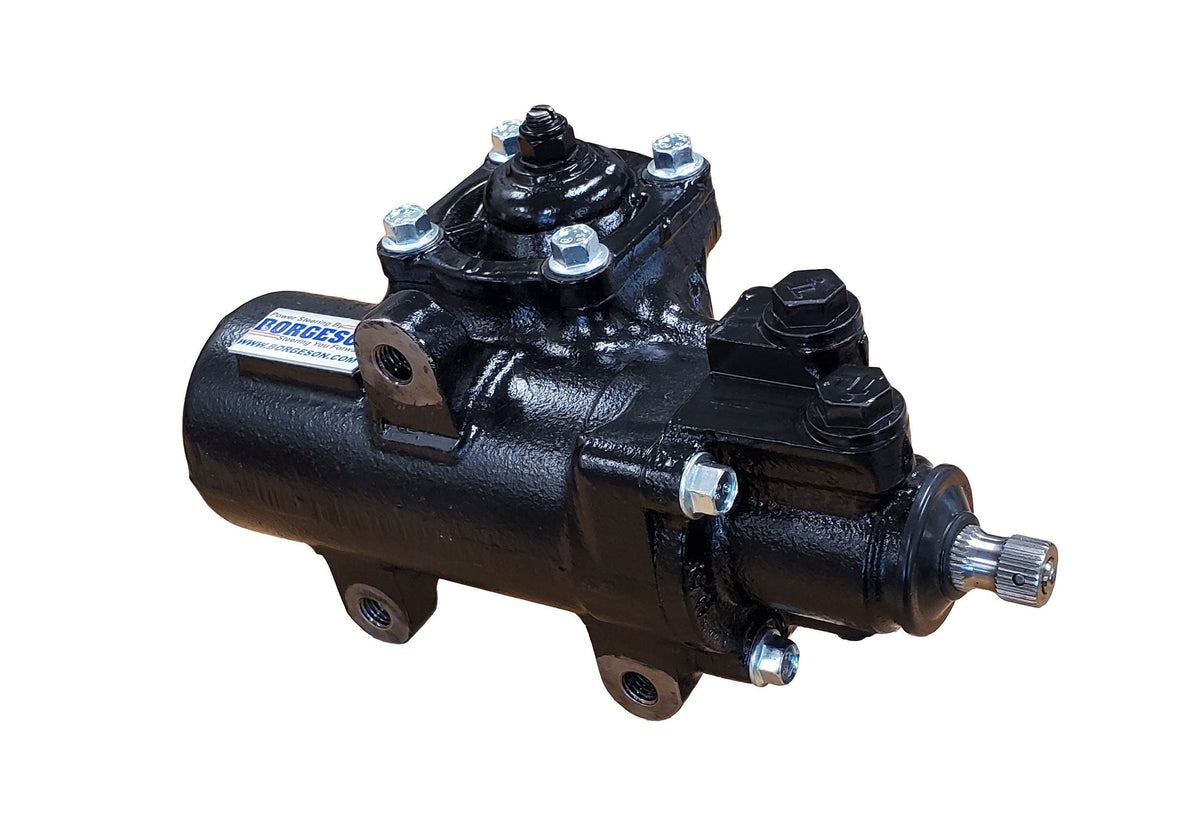

Borgeson Power Steering Box, 1988-98 Chevy/GMC OBS, Street & Performance 12.7:1

Borgeson's Street & Performance quick-ratio power steering box is the only quick-ratio replacement for the Delphi 800-series gear in 1988-1998 Chevy/GMC OBS trucks and fullsize SUVs. The 12.7:1 ratio delivers a firm, modern feel with fewer turns lock-to-lock. It bolts to the stock location and reuses the factory pitman arm, steering shaft, and power steering hoses.

Fitment: 1988-1998 Chevrolet/GMC OBS trucks and fullsize SUVs (incl. Tahoe/Suburban applications).

Specifications

• Steering ratio: 12.7:1 (quick ratio)
• Input shaft: 3/4 in., 30-spline
• Pitman shaft: 1-1/4 in. GM, 32-spline (4 master splines)
• Pressure port: M18 x 1.5 O-ring
• Return port: M16 x 1.5 O-ring
• Max operating pressure: 1450 PSI (1100-1250 PSI optimal)
• Recommended flow: 2.5-3.0 GPM
• Turns lock-to-lock: 3
• Housing material: Cast iron
• Finish: Black paint
• Condition: New (not remanufactured)
• Warranty: 3-year
• Origin: Assembled and tested in the USA
