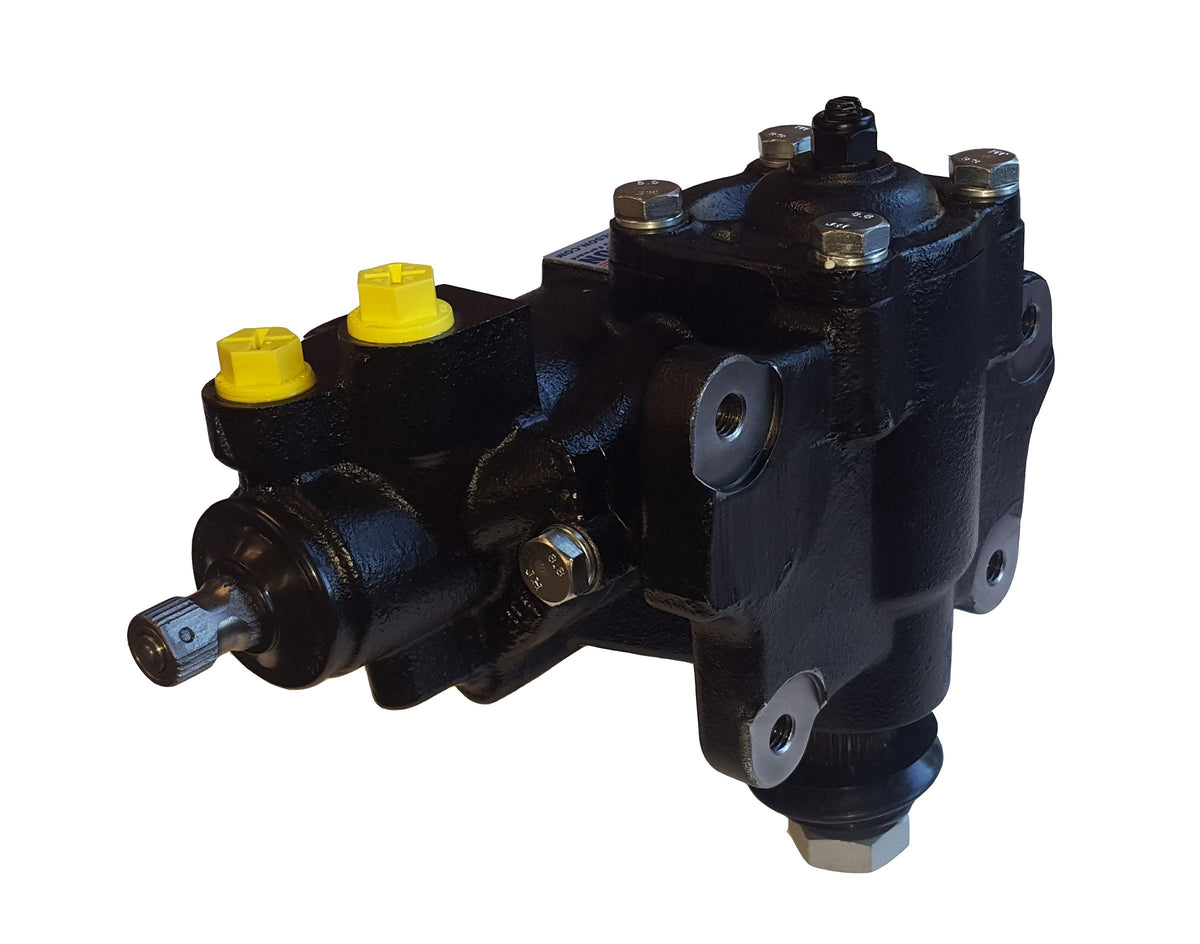

Borgeson Power Steering Box, 1968-86 Chevy C10, Street & Performance 12.7:1

Borgeson's all-new Street & Performance quick-ratio power steering box replaces the Saginaw/Delphi 800-series gear in 1968-1986 Chevy C10 trucks. The 12.7:1 ratio gives a firm, modern steering feel with fewer turns lock-to-lock. It bolts to the stock location and fits the original power steering pitman arm, and includes adapters for either O-ring or flare-style hose connections.

Fitment: 1968-1986 Chevrolet C10 (fullsize truck). Pre-1977 trucks require rag joint connector #990012; trucks converting from manual steering need a power steering pitman arm.

Installation note: Pre-1977 trucks require rag joint connector #990012.

Specifications

• Steering ratio: 12.7:1 (quick ratio)
• Input shaft: 3/4 in., 30-spline
• Pitman shaft: 1-1/4 in. GM, 32-spline (4 master splines)
• Pressure port: M18 x 1.5 O-ring (or 11/16"-18 flare, inserts included)
• Return port: M16 x 1.5 O-ring (or 5/8"-18 flare, inserts included)
• Max operating pressure: 1450 PSI (1100-1250 PSI optimal)
• Recommended flow: 2.5-3.0 GPM
• Turns lock-to-lock: 3
• Housing material: Cast iron
• Finish: Black paint
• Condition: New (not remanufactured)
• Warranty: 3-year
• Origin: Assembled and tested in the USA
